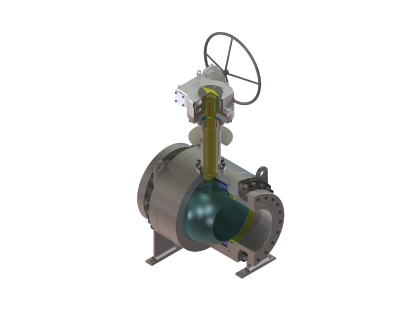

API 6A Ball Valves

API 6A, FIRE-SAFE, NACE

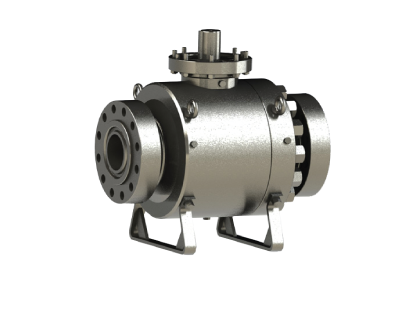

GVS API 6A Ball Valves are manufactured in sizes 1 13/16” to 11” and for pressures of 2,000 to 10,000 PSI. These valves come standard with fire-safe certification and NACE, making them suitable for critical pressure control applications in the Oil & Gas industry.

Technical Specifications

API 6A
1 13/16” – 11” Full & Reduced Port
2,000 – 10,000 PSI
RTJ, BW, and Hub
API 6A, API 6FA, NACE MR0175-SOUR

Features

Bolted Body, 2-Piece & 3-Piece Construction
Double Block and Bleed
SPE and DPE Seat Design (SPE x SPE, DIB-1, DIB-2)
Metal to Metal Seated and/or Soft Seated
Anti-Blow-Out Stem Design
Anti-Static Devices
Bubble-Tight Shut-Off
Fire Safe Certified: API 6FA
NACE MR0175 SOUR

Options & Catalog

Catalog

PDF

Swipe left or right to see other products

Where are API 6A Ball Valves Used?

GVS API 6A Ball Valves are primarily used in upstream Oil & Gas operations, particularly in wellhead assemblies, choke and kill systems, and high-pressure Christmas trees. They are designed to handle extreme pressures—up to 15,000 PSI—and harsh environments, making them ideal for controlling flow directly at the well site. These valves provide reliable isolation for fracturing operations, testing manifolds, and production trees where safety and pressure integrity are critical.

Wellheads & Christmas Trees: Providing isolation and shut-off for oil and gas production at the surface.
Fracturing & Testing Manifolds: Managing flow and pressure control during hydraulic fracturing and well testing.
Choke & Kill Lines: Controlling flow in critical safety systems during drilling and production operations.
High-Pressure Injection: Handling aggressive fluids at pressures up to 15,000 PSI.

API 6A ball valves are engineered for use in high-pressure, high-temperature (HPHT) upstream oil and gas environments where safety and pressure integrity are essential.
